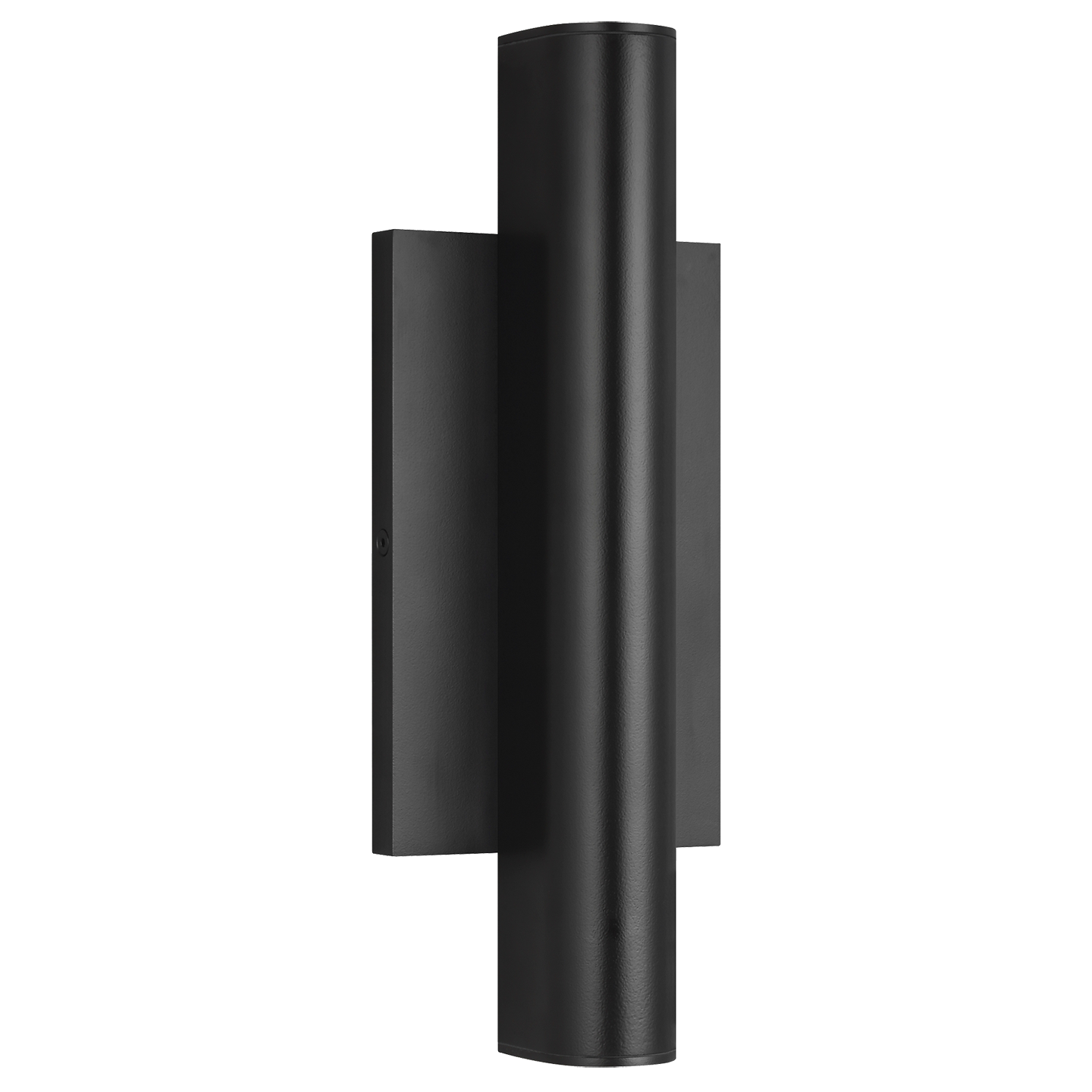

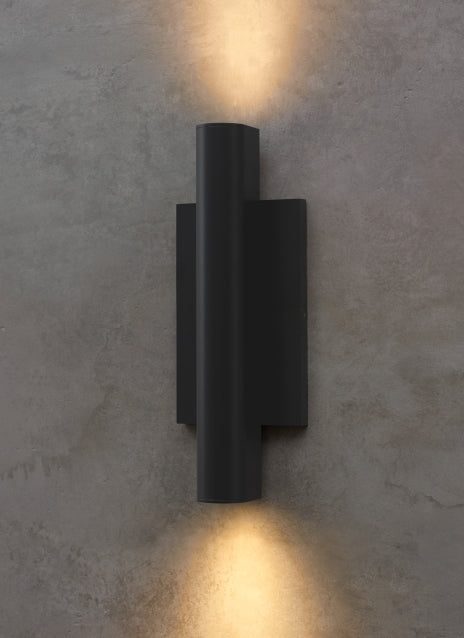

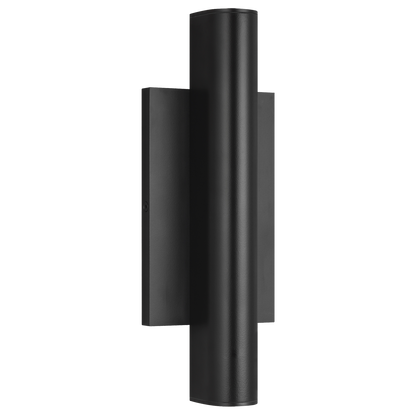

Chara 12 Outdoor Wall

• :Universal 120-277 volt driver with integral transient surge protection at 2.5KV per American National Standard (ANSI) and IEEE standards.
• :The LED Driver is housed within the junction box for this product
• :5-year Warranty. Go to "www.techlighting.com" for warranty details.
• Country of origin:CN
• Base Code:700OWCHA12
• Family:Chara
• Introduction Date:1/11/2019
• System:Outdoor

• Bulb Shape:Integrated LED
• Extension:2.7in
• Height:12.3in
• Length:4.5in
• Weight:2
• Width:2.7in

• Electrical Info:
  • INPUT VOLTAGE: Universal 120V-277V
  • IS ENERGY STAR: 0
  • DIMMER TYPE: 0-10
  • EFFICACY: 109
  • L70: >60000
  • START TEMPERATURE: -30°C
  • FOR BATTERIES ONLY: Is battery contained within a product? Y/N
  • FOR BATTERIES ONLY: Type of battery (lithium ion
  • FOR BATTERIES ONLY: How many batteries?
• Backplate Dimensions (Multiple):
  • BACKPLATE HEIGHT IN: 7.5in
  • BACKPLATE LENGTH IN: 4.5in
  • BACKPLATE WIDTH IN: 0.6in
  • BACKPLATE DEPTH IN: 0.6in
• Bulb Specifications:
  • NUMBER OF BULBS: 1
  • TYPE OF BULB: LED
  • BULB BASE: Integrated LED
  • BULB COLOR TEMPERATURE: 3000K
  • LAMP INCLUDED: TRUE
  • CRI: 90 CRI
  • LIGHT OUTPUT: 1286
• Shade Specifications:
  • SHADE MATERIAL: Aluminum
  • SHADE HEIGHT INCHES: 12.3in
  • SHADE LENGTH INCHES: 4.5in
  • SHADE WIDTH INCHES: 2.7in
• Supplemental Info:
  • RECOMMENDED ROOM1: Outdoor
  • RECOMMENDED ROOM2: Patio
  • RECOMMENDED ROOM3: Deck
  • GENRE1: Modern
  • GENRE2: Industrial
  • GENRE3: Minimalist
  • FROM CENTER JBOX HEIGHT: 3.75in
  • IS TITLE 20: FALSE
  • IS TITLE 24: TRUE
  • IS 24 VOLT: FALSE
  • IS SORAA: FALSE
  • IS INTEGRATED LED: TRUE
  • IS REPLACEABLE LAMP: FALSE
  • IS MOTION SENSOR INCLUDED: FALSE
  • IS PHOTOCELL INCLUDED: FALSE
  • IS SOLAR POWERED: FALSE
  • IS DARK SKY: FALSE
  • IS TRANSFORMER REQUIRED: FALSE
  • IS WET IP65: TRUE
  • IS WET LOCATION: TRUE
  • IS DAMP LOCATION: FALSE
  • IS DRY LOCATION: FALSE
  • IS DIMMABLE: TRUE
  • IS FWC COMPLIANT: FALSE
  • IS CABLE FIELD CUTTABLE: FALSE
  • IS REVERSABLE: TRUE
  • IS SLOPED CEILING COMPATIBLE: FALSE
  • IS ADJUSTABLE HEAD: FALSE
  • IS BULB INCLUDED: TRUE
  • DOWNROD QUANTITY: 0
  • PROP 65 ELIGIBLE?: FALSE

Tear sheet
