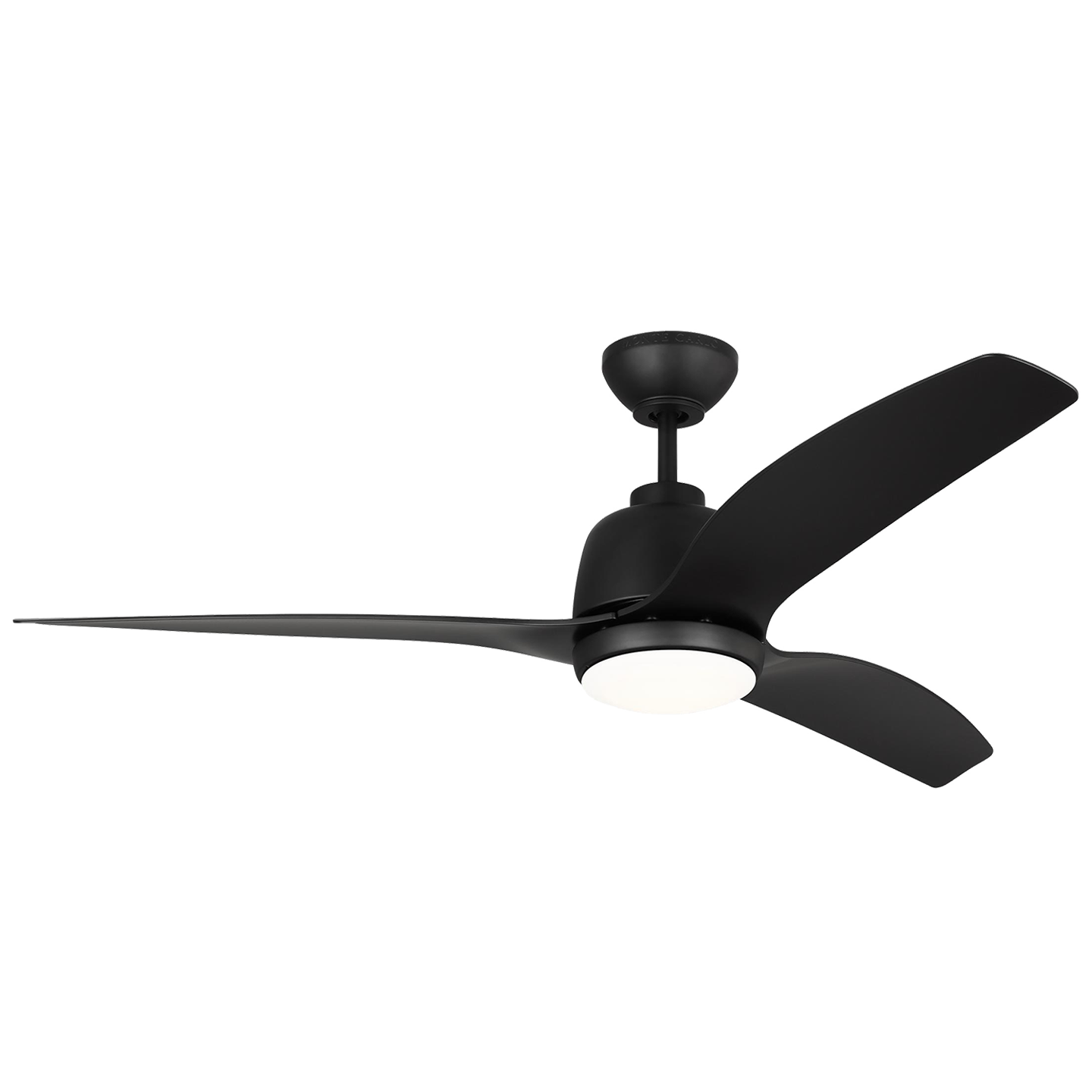

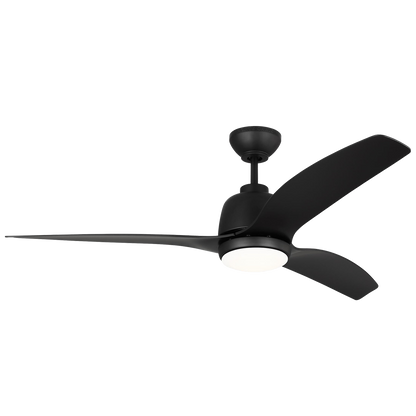

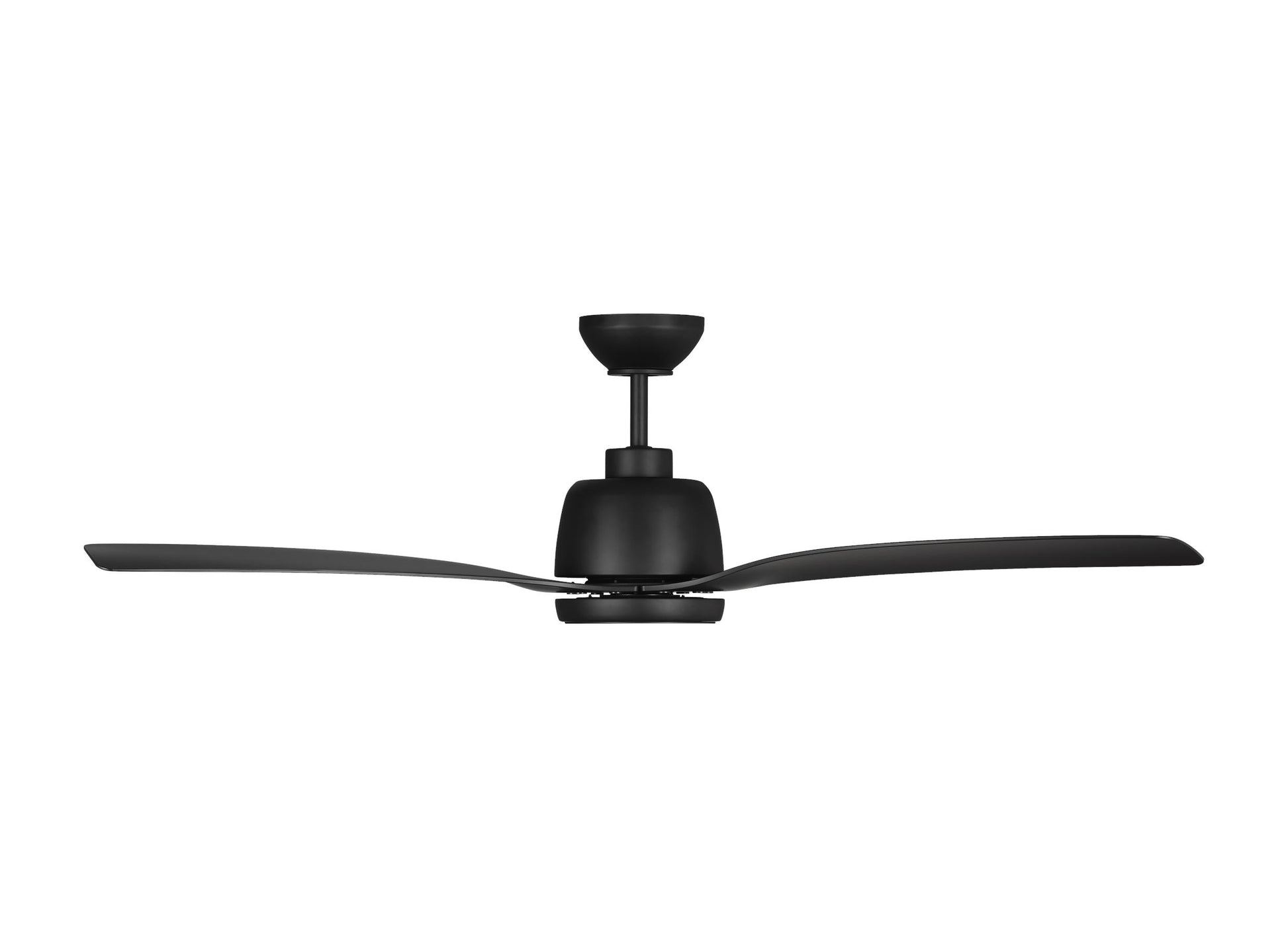

Avila 52" LED Ceiling Fan

• :From the brand formerly known as Monte Carlo
• :Modern, transitional, 3 blade fan with stainless steel housing and midnight black blades for wet locations
• :4-speed, dimmable fan with remote ideal for covered patios, porches and gazebos
• :6" black downrod included, sloped ceiling compatible and blanking plate included for light kit removal
• :Available in Matte White and Midnight Black
• :Wet Rated
• Country of origin:China
• Base Code:3AVLCR54D
• Family:Avila
• Introduction Date:1/1/2022
• Item Number:3AVLCR54MBKD
• Style:Modern

• Dimensions:D:54'' H:16 3/16''
• Height:16.2
• Weight:17.2

• Electrical Info:
  • ENERGY STAR: No
  • Remote Incl: Yes
  • Motor Size: 153.0 X 18.0 mm
  • Motor Type: AC
  • CFM (High): 4907
  • Watts (High): 58
  • CFM/Watt (High): 85
  • CFM (Low): 2218
  • Watts (Low): 13
  • CFM/Watt (Low): 171
  • Standard Energy Use Wave: 38
  • Standard Estimated Yearly Energy Cost: 11
  • Standard Efficiency: 97
  • Switch Location: N/A
  • Switch Type: N/A
  • Voltage: 120
• Bulb Specifications:
  • Lamping: 1 Array Integrated 20 watt light bulb
  • Temperature (°K): 3000
  • CRI: 90
  • Lumens: 770
  • Number of Bulbs: 1
  • Type of Bulbs: Array
  • Bulb Included: Yes
  • Bulb Volts: 120
  • Bulb Base: 19 - Integrated
  • Bulb Type: LED - Array
  • Bulb Dimming Range Min: 10
  • Bulb Dimming Range Max: 100
  • Bulb Light Source Name: LED
  • Bulb Rated Life: 50000
  • Bulb Spot Type: 1
• Shade Specifications:
• Supplemental Info:
  • Blade to Ceiling: 13.6
  • # of Blades: 3
  • Blade Pitch: 21
  • Min. Ceiling Height: 8.13
  • Canopy Style: Downrod
  • Canopy Diameter: 5.9
  • Max Blade-to-Ceiling Height: 13.6
  • Min Blade-to-Ceiling Height: 11.5
  • Standard Weighted Average Airflow: 3647
  • Remote Control Type: Handheld Remote
  • Light Kit Included: Yes
  • Canopy: D
  • Max Ceiling Slope: 30
  • Safety Rating: cETL
  • Safety RATING LOCATION: wet
  • E/S / Title 24: Y
  • Title 24 1: Y
  • Title 24 3: Y
